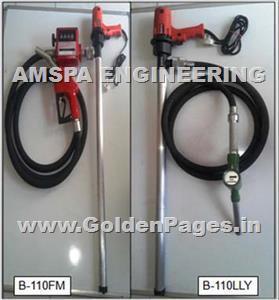

| Barrel Pump |
Product Details:
Minimum Order Quantity 1 Unit
Power Source Electric
PUMP
Rated input Power-750W (1HP)
Rated Frequency- 50 Hz, 220
Variable Speed Motor
No-load speed-300--15000 r/min. Hydraulics lift- 15 m.
Delivery Capacity- 30-100 L/min. Suction Tube – Aluminium, Impeller – PP
Inlet – 40 mm, Outlet – 25 mm
OPTIONAL ACCESSORIES
Mechanical Turbine Flow meter 1 % accuracy
Assorted Connectors
Automatic Cut Off Nozzle 1”
Black Crimped Rubber Hose 4 meter
Mechanical Flow Meter Nozzle
|
|
|
|
|
| Diesel Barrel Pump |
Product Details:
Power Source Electric
Motor Horsepower 1 HP
Maximum Discharge Flow 110 LPM
PUMP
Rated input Power-750W (1HP)
Rated Frequency- 50 Hz, 220
Variable Speed Motor
No-load speed-300--15000 r/min. Hydraulics lift- 15 m.
Delivery Capacity- 30-100 L/min. Suction Tube – Aluminium, Impeller – PP
Inlet – 40 mm, Outlet – 25 mm
OPTIONAL ACCESSORIES
Electronic Turbine Flow meter 1 % accuracy
Assorted Connectors
Automatic Cut Off Nozzle 1”
Black Crimped Rubber Hose 4 meter
Mechanical Flow Meter Nozzle
|
|
|
|
|
| Diesel Dispenser |
Product Details:
Minimum Order Quantity 1 Piece
Brand AMSPA
Machine Type Semi-Automatic
Model - ETP-60AF AC 220 V
Cast Iron Vane Pump Continuous Working Principle. Pump In & Out – 1”.Max Flow – 60 LPM Power – 550W , Speed – 2800 rpm, Voltage – 220 V SINGLE PHASE, SELF PRIMING. Suction – 5m, Head – 10 m, Connector, Filter, MS Panel Frame, Mechanical Turbine Flow meter 20-120 LPM , Accuracy 1%, Rubber Hose 4 m for delivery, 2 meter Nylon hose for suction. 50 Micron Filter, 1” Manual Nozzle, Crimped Hoses.
Diesel Dispenser - 1
|
|
|
|
|
| Flame Proof Fuel Dispenser |
Model – B80 ExA-Cast Iron
Electric Self Priming Pump for flammable media
Gasoline, Diesel , Kerosene. Rotary Vane Pump. Built in Bypass Valve. Built in Filter. Easy accessible for cleaning. Explosion Proof
Induction motor with Aluminium casing. Continuous working principle. Applicable for
Transferring media from barrel, underground Tanks, tankers and overhead tank. Flow rate -80 LPM, 1” Port, 220V, 550 W, 2800 rpm, Suction – 5m , Head – 15 m
1” Manual Nozzle.4 meter crimped rubber hose. Filter. 2 meter Nylon crimped Hose, 1” Mechanical Turbine Flow Meter, Accuracy + 1%
Assorted Connectors
|
|
|
|
|
| Flame Proof Fuel Dispensers |
Product Details:
Minimum Order Quantity 1 Piece
Brand AMSPA
Capacity 80 LPM
Machine Type Semi-Automatic
ETP-80EX120
Model – B80 Ex-Cast Iron
Electric Self Priming Pump for flammable media . Gasoline, Diesel , Kerosene. Rotary Vane Pump. Built in Bypass Valve. Built in Filter. Easy accessible for cleaning. Explosion Proof
Induction motor with Aluminium casing. Continuous working principle. Applicable for
Transferring media from barrel, underground Tanks, tankers and overhead tank. Flow rate -80 LPM, 1” Port, 220V, 550 W, 2800 rpm, Suction – 5m , Head – 15 m.1” Automatic Cut Off Nozzle.4 meter crimped rubber hose. Filter. 2 meter Nylon crimped Hose. MS Panel. Mechanical Aluminum Oval Gear Flow Meter.
|
|
|
|
|
| Flame Proof Fuel Transfer Skid |
ETP-80EX120
Model – B80 Ex-Cast Iron
Explosion Proof Motor .Electric Self Priming Pump for flammable media
Gasoline, Diesel , Kerosene. Rotary Vane Pump. Built in Bypass Valve. Built in Filter. Easy accessible for cleaning. Explosion Proof
Induction motor with Aluminium casing. Continuous working principle. Applicable for
Transferring media from barrel, underground Tanks, tankers and overhead tank. Flow rate -80 LPM, 1” Port, 220V, 550 W, 2800 rpm, Suction – 5m , Head – 15 m
1” Automatic Cut Off Nozzle.4 meter crimped rubber hose. Filter. 2 meter Nylon crimped Hose.
Additional Information:
Minimum Order Quantity: 1 Unit
|
|
|
|
|
| Diesel Transfer Skid |
For Fuelling Diesel, Kerosene. Vane Pump, 60 LPM , Voltage – 230V, 550W, Speed – 2800 rpm, Max Pressure – 3 bar, Head – 10 m, Negative suction – 5 m, Self Priming, Cast Iron Casing, Steel Rotor, Bypass Valve, Built in Filter, Induction Motor with aluminum casing.
Continuous Duty ROTARY VANE PUMP. Assorted Connectors. 4 meter crimped rubber hose, 2 meter Nylon wire braided crimped hose, Filter , 1” manual Nozzle, strainer
Additional Information:
Minimum Order Quantity: 1 Unit
|
|
|
|
|
| Diesels Dispenser |
For Fuelling Diesel, Kerosene. Vane Pump, 60 LPM , Voltage – 230V, 550W, Speed – 2800 rpm, Max Pressure – 3 bar, Head – 10 m, Negative suction – 5 m, Self Priming, Cast Iron Casing, Steel Rotor, Bypass Valve, Built in Filter, Induction Motor with aluminum casing.
Continuous Duty Rotary Vane Pump. Assorted Connectors. 4 meter crimped rubber hose, 2 meter Nylon wire braided crimped hose, Filter , 1” Mechanical Flow Meter Nozzle, Accuracy + 1% strainer.
Additional Information:
Minimum Order Quantity: 1 Piece
|
|
|
|
|
| Diesels Dispensers |
For Fuelling Diesel, Kerosene. Vane Pump, 60 LPM , Voltage – 230V, 550W, Speed – 2800 rpm, Max Pressure – 3 bar, Head – 10 m, Negative suction – 5 m, Self Priming, Cast Iron Casing, Steel Rotor, Bypass Valve, Built in Filter, Induction Motor with aluminum casing.
Continuous Duty ROTARY VANE PUMP. Assorted Connectors. 4 meter crimped rubber hose, 2 meter Nylon wire braided crimped hose, Filter , 1” manual Nozzle, strainer, 1” Mechanical Oval Gear Flow Meter. + 0.3%
Accuracy.
Additional Information:
Minimum Order Quantity: 1 Piece
|
|
|
|
|
| Diesels Dispenserss |
For Fuelling Diesel, Kerosene. Vane Pump, 60 LPM , Voltage – 230V, 550W, Speed – 2800 rpm, Max Pressure – 3 bar, Head – 10 m, Negative suction – 5 m, Self Priming, Cast Iron Casing, Steel Rotor, Bypass Valve, Built in Filter, Induction Motor with aluminum casing.
Continuous Duty Vane Pump. Electronic turbine Flow meter. Assorted Connectors., Accuracy + 1%, 4 meter crimped rubber hose, 2 meter Nylon wire braided crimped hose, Filter , 1” manual Nozzle, strainer
Additional Information:
Minimum Order Quantity: 1 Unit
|
|
|
|
|
| Flameproof Barrel Pumps |
PUMP B40
Explosion Proof
Inlet 55 mm
Outlet 20 mm
Head 2.5 m
Flow 50L/min
Power 0.12 Ex
Speed 2800 rpm
Voltage 220V
50 Hz
Explosion Proof
Tube Material
STAINLESS
STEEL
Impeller port PP
OPTIONAL
4 meter Crimped Rubber Hose
1” Manual Nozzle
Nozzle
Mechanical Flow Meter Nozzle
Mechanical Flow Meter.
Additional Information:
Minimum Order Quantity: 1 Unit
|
|
|
|
|
|
|
|
|
